Battery
320 V 20 Ah Lithium Iron Phosphate Battery
Motor
Mid-drive Motor
30-minute Max. Continuous-rated Power
23 kW
Peak Motor Power
40 kW
Max. Wheel Torque
PERFORMANCE
Max. Speed
160 km/h
Acceleration(0-100 km/h)
<4.9 s
Climbing Angle
>30°
BRAKE
Front Brake System
Bosch ABS+TCS, Brembo Caliper (4 Pistons Radial Caliper)
Rear Brake System
Bosch ABS+TCS, Brembo Caliper (2 Pistons Caliper)
VEHICLE CONFIGURATION
Size
2080×860×1100-1440 mm
Front Wheel
110 / 70ZR17
Rear Wheel
150 / 60ZR17
Front Suspension System
KYB Inverted Shock Absorption
Rear Suspension System
KYB Mid-mounted Shock Absorption
INTELLIGENT CONFIGURATION
Unlocking System
Remote / Bluetooth / Voice

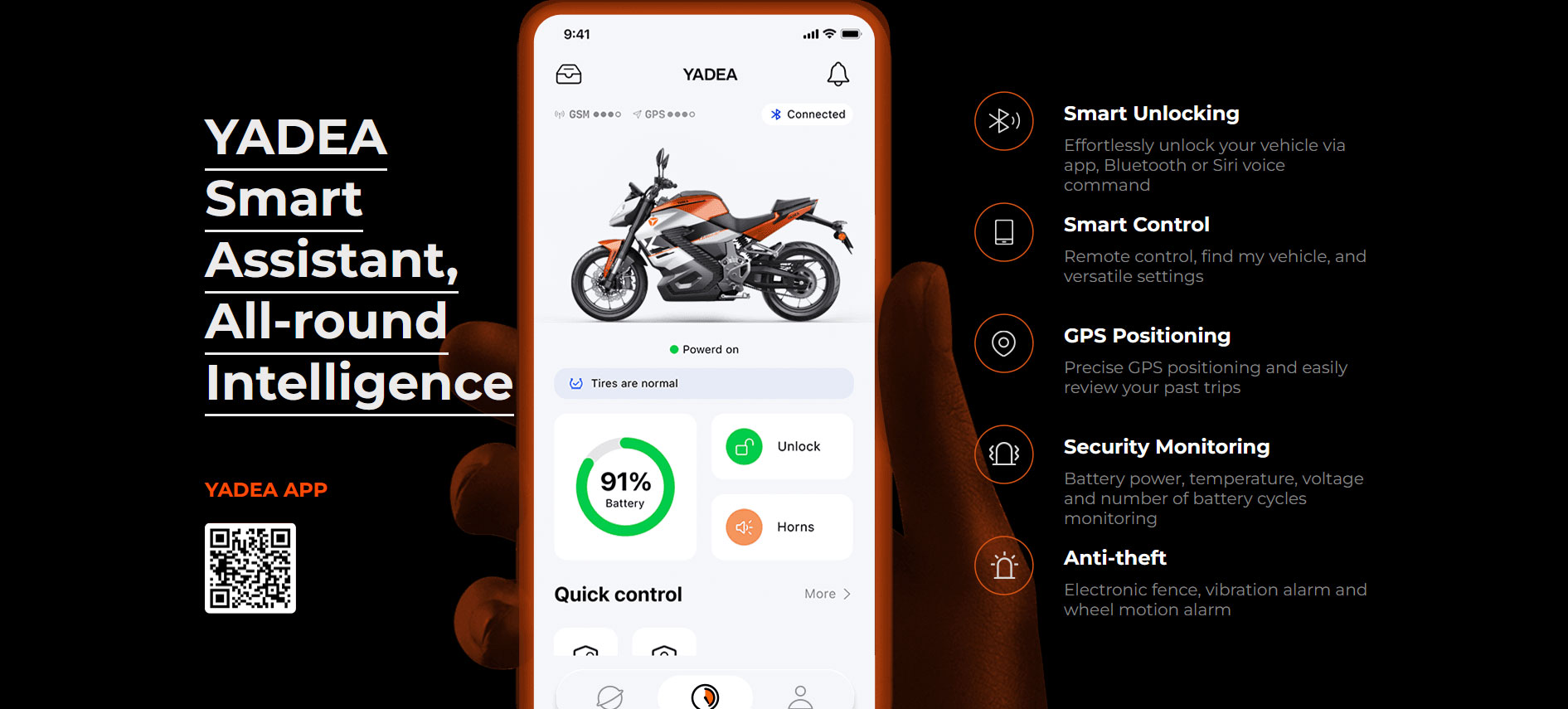

Mobile Control
YADEA APP Control
Dashboard
7-inch TFT Smart Dashboard
HOMOLOGATION
L3e-A2
1, The performance figures displayed on this page are the results tested in the Yadea Laboratory. Various factors have influence on these data, such as temperature, humidity, wind speed, load, road conditions and operating habits. Meanwhile, the selling versions in different countries and regions vary. Please refer to the information provided by the actual place of purchase. Yadea reserves the right to change or modify any specifications without prior notice.
2, The 80% Charged in 10 Minutes is the Yadea Laboratory test data that the temperature of battery cell should be between 10℃and 35℃, in order to achieve 0-80% charging in 10 minutes.

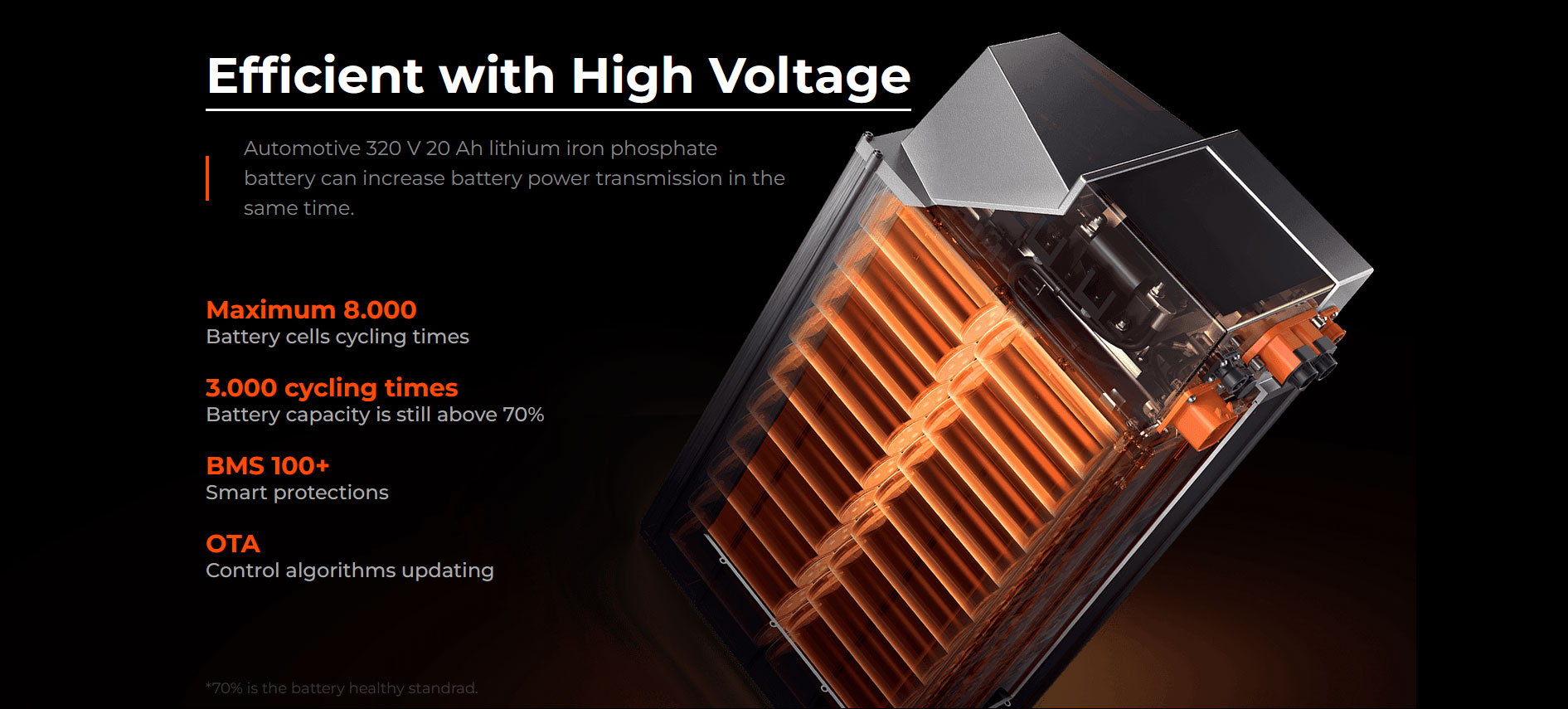

3, "Maximum 8.000 times of the battery cell cycling" is the number of battery cell cycling testing under the condition of completing battery charging and discharging in 1 hour at 25℃ ambient temperature, as tested by the battery manufacturer.
4, "After 3.000 charging and discharging cycles of the battery system, the battery capacity is still more than 70%" is the result of battery manufacturer's testing, under the condition of completing the battery charging and discharging at 25℃ ambient temperature in 1 hour, after 3.000 charging and discharging cycles, the battery capacity is still more than 70%.
5, The 0 to 100 km/h in 4.9s is the result obtained by Yadea Laboratory with the Kemper peak power 40 kW motor, at 25℃ambient temperature, with a 75kg load, maximum discharge current larger than 155A for 10s, and the battery capacity more than 85% on a test bench.
6, The 160 km/h max. speed and 570 N·m maximum torque (tires) are the test data from Yadea Laboratory with the Kemper peak power 40 kW motor, at 25℃ ambient temperature, with a load of 75kg and battery capacity more than 85% on a test bench.
7, “Climbing angle is more than 30 °" is the result of the Kemper test data conducted by Yadea Laboratory at 25 °C ambient temperature, 75kg load, fully charged battery, and on a test bench.
8, “The highest efficiency of the controller is 98% " is the highest efficiency achieved by the controller during test on a test bench at a voltage of 320V and a motor speed of 3000rpm in Yadea Laboratory.
9, "An irradiation width of 10m, a distance of over 100m and 50,000cd brightness" is the test data conducted by Yadea Laboratory.
10, The product configuration, function, performance, specification and other information involved on this page are illustrated by taking Kemper as an example. For specific information of other versions, please refer to the specification details and specific vehicles.
